Cynthia Woods Mitchell Pavilion Outdoor Amphitheater LED Video Screens

LD Systems designed and installed the Woodlands Pavilion video screens and video control system upgrade that would providing the ampitheater with a competitive way to enrich the visual experience of guests. LD Systems design-build video experts offered a unique solution that improved video distribution and video monitoring throughout the venue. The installation process included a new video distribution management system, new large outdoor LED screens and multiple flat panel displays installed throughout the concessions areas.

Outdoor LED Video Screens

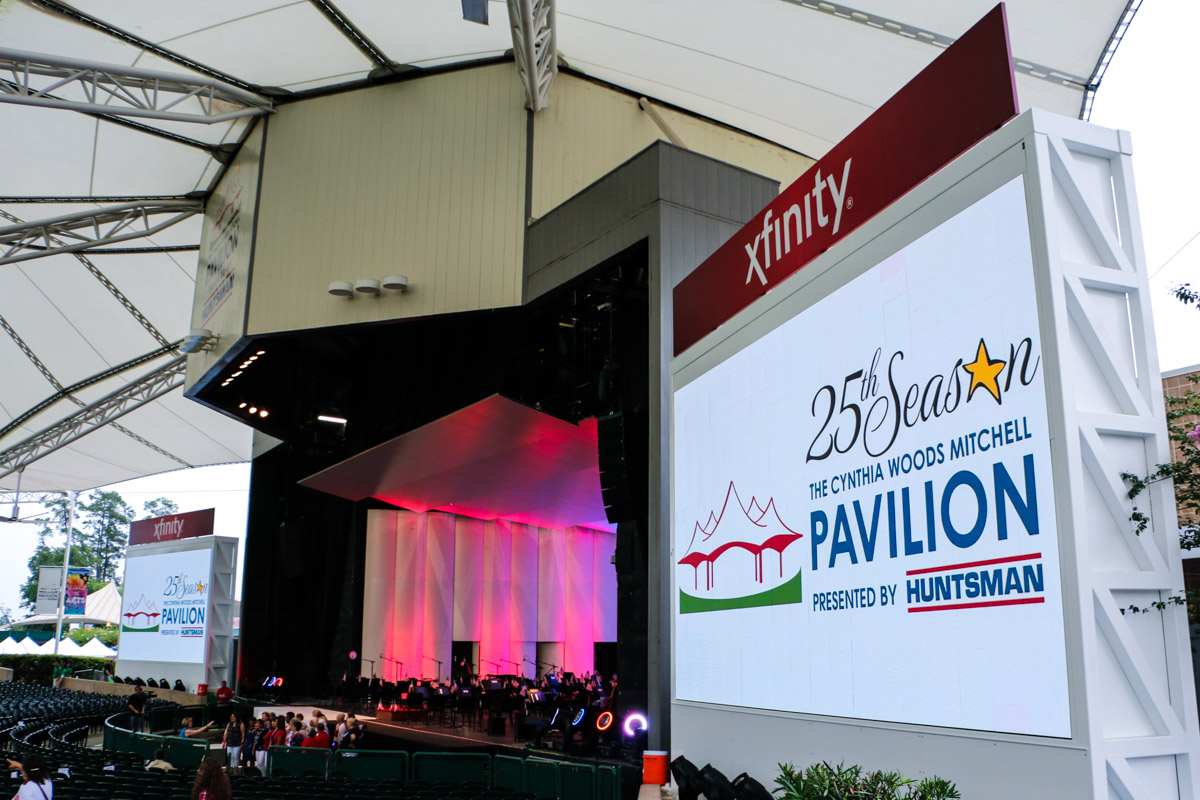

The new LED screens supporting the main stage performances are 29.5 feet wide by 16.5 feet tall with a consistent 486.75 square feet of viewing surface per screen. The video screens are comprised of Screenworks X7-HD modules that offer a wide variety of deployment options and portability. The 7.8mm LEDs also offer exceptional picture quality and extreme brightness, solving the need for a transitional outdoor day and night solution. A third LSI 10mm video LED wall was installed in the concessions plaza area that would serve patrons outside of the performance viewing space. LD Systems fabricated and installed the weather resistant housings supporting the LED modules. Additionally, new flat panel displays inside the concessions areas serve a multitude of onscreen options such as live performance broadcasting or prepared video advertising content.

The video system installation solution required a special data management and content distribution system that would give video operators full control. The video control systems included a new front end server, multi view display, video switchers, routing and an AMX touch interface operating on a seamless single network with customized options.
